British Designed, British Built CNC Plasma Cutting Machines
The established KUTAVAR range. Compact CNC plasma cutting tables built for heavy-duty industrial use on mild steel, stainless and aluminium.

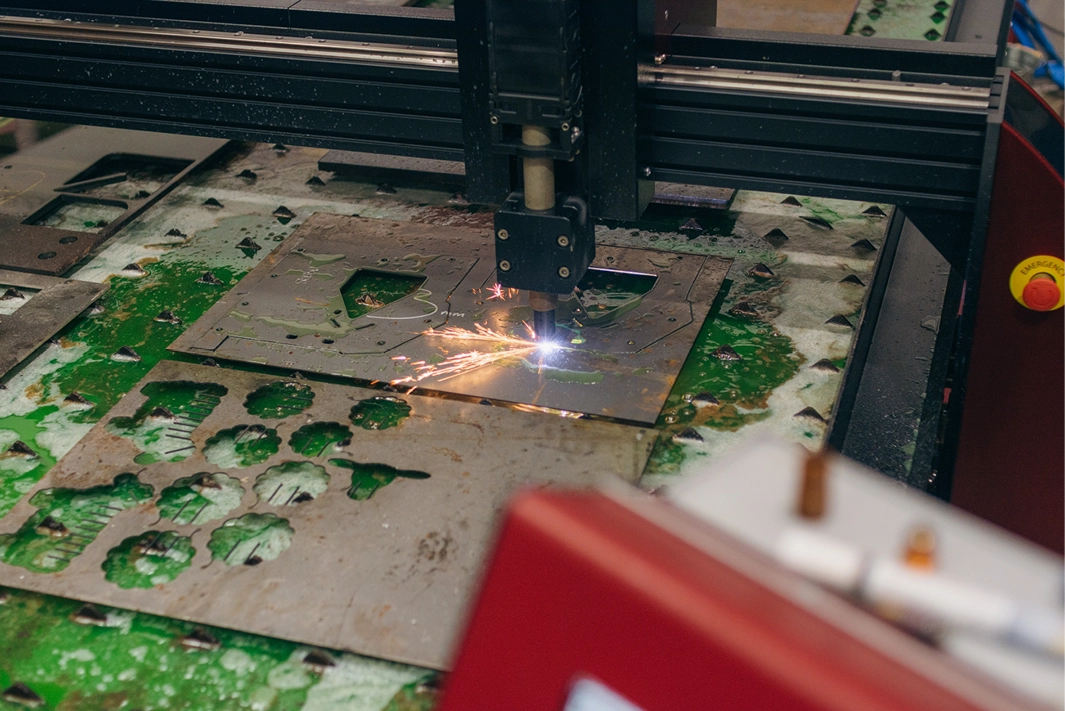

The Machine
Performance at its core
Plasma is the workhorse of the KUTAVAR range and the process most of our customers start with. It cuts a wide range of conductive materials quickly, it is economical to run, and on a machine built to micron tolerances.
- Hypertherm power throughout. Powermax Family, MAXPRO and XPR range, matched to plate thickness and duty cycle.
- Precision drives. NEMA 34 hybrid stepper or servo motors with encoder, on high-precision planetary gearboxes.
- Automatic height control. Torch height tracks the plate, holding arc voltage through distortion and scale.
Specifications
The numbers
Indicative specifications for the plasma range. Final figures are confirmed against your configuration at quotation.
| Cutting capacity — mild steel | Up to 80 mm |
| Recommended production pierce | Up to 50 mm |
| Power sources | Hypertherm PowermaxSYNC 45–105 · Hypertherm Powermax125, MAXPRO200, Hypertherm XPR 170–300 |
| Table sizes (as standard) | 1.25 × 1.25 m to 4.0 × 2.0 m |
| Drive system | NEMA 34 stepper or servo with encoder |
| Permissible load | Up to 5,000 kg |
Power Sources
Matched to the work
Every KUTAVAR plasma table is specified around a Hypertherm power source chosen for the plate you actually cut, rather than the thickest plate you might one day cut.
01
Powermax Family
Light to mid-gauge work up to 25 mm. The most economical choice for general fabrication and repair.
02
MAXPRO200
Heavy production. Sustained high duty cycle on thicker plate, 20–30 mm, for shops cutting all day, every day.
03
XPR
High-definition (Hi-Def) plasma offers superior cut quality, tighter tolerances, and increased cutting speed when compared to conventional plasma. Hi-Def plasma excels in cutting thicker plate, with greatly improved accuracy for holes and intricate shapes.
Applications
Where it earns its keep
Plasma suits almost any shop cutting conductive material day to day. It is the broadest-application process in the KUTAVAR range.
Integrated Software
One control platform
KUTAVAR motion control and software incorporate CAD, CAM and CNC in a single interface — and it is the same interface across plasma and oxy-fuel.
- DXF, G-code and silhouette image import as standard.
- Profile nesting to reduce plate waste on every job.
- Pre-loaded library of standard flexi-shapes.
Service & Support
Looked after for the life of the machine
Installation, operator training and servicing by KUTAVAR engineers, with consumables and wear parts dispatched from our Hereford stores.
01
Installation & training
Every machine is installed and commissioned by KUTAVAR engineers, with operator training delivered on site.
02
Servicing & maintenance
Planned servicing and breakdown support, to keep the machine cutting and the warranty intact.
03
Spares & consumables
Nozzles, electrodes, shields and wear parts, picked and dispatched from our Hereford stores.
Also in the range
Two more ways to cut
The same British engineering, applied to a different process.
CNC Oxy-Fuel Cutting
Oxy-Fuel Cutting
For heavy steel, where plate is thicker than plasma or laser can economically carry.
CNC Laser Cutting
Laser Cutting
The finest kerf and the cleanest edge in the KUTAVAR range, for high-volume precision sheet metal work.
