Cutting Options

Thermal Cutting Options

Powered by Hypertherm & Kjellberg

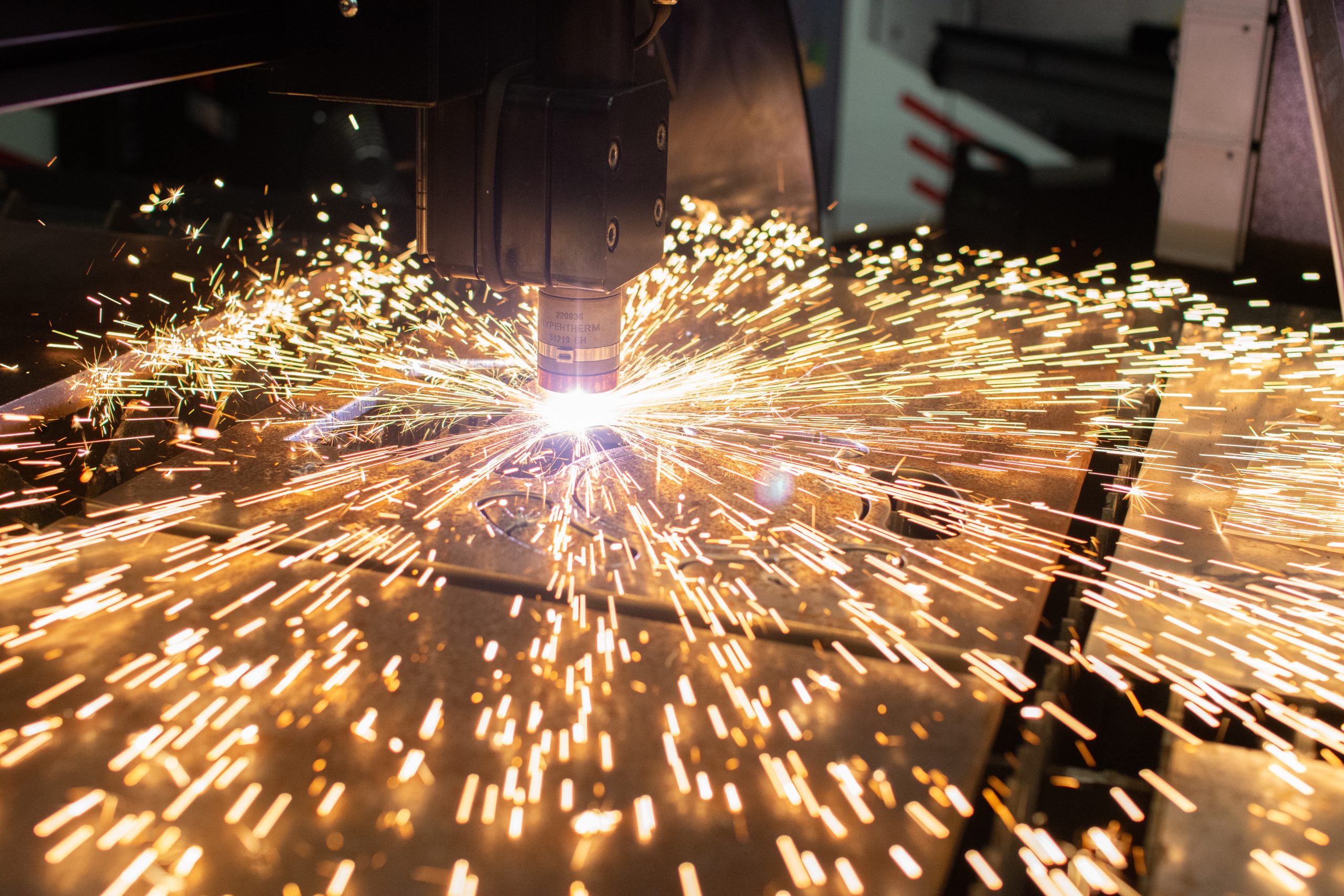

Powered by the two leading global brands in plasma cutting, Hypertherm and Kjellberg. Depending on which power source is selected, a maximum pierce capacity of 50 mm is achievable on mild steel, and 38 mm on aluminium and stainless steel.

KUTAVAR machines are unique, in that all zoned extraction (bafflebed) tables* can be equipped with an oxy-fuel gas cutting torch. A simple manual changeover allows the operator to swap from the plasma torch to the gas torch and easily cut mild steel up to 100 mm thick.

*CNC Oxy-fuel gas cutting is not available in combination with High-Definition plasma.

wdt_ID POWERSOURCE Powermax 45 XP Powermax 65 Powermax 85 Powermax 105 Powermax 125 MAXPRO200 XPR170 XPR300
1 Pierce Capacity (MS) 12 mm 16 mm 20 mm 22 mm 25 mm 32 mm 40 mm 50 mm
2 Pierce Capacity (SS) 12 mm 12 mm 16 mm 20 mm 25 mm 25 mm 22 mm 38 mm
3 Pierce Capacity (ALU) 10 mm 12 mm 16 mm 20 mm 25 mm 32 mm 25 mm 38 mm
4 Output Current 20-45A 20-65A 25-85A 30-105A 30-125A 200A 170A 300A
5 GAS SUPPLY Air or N2 / F5 Air or N2 / F5 Air or N2 / F5 Air or N2 / F5 Air or N2 / F5 Air / Air O2 O2 Ar / H2, N2, Air / F5 O2 Ar / H2, N2, Air / F5
6 INPUT VOLTAGE 230 V, 1-PH415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH
7
POWERSOURCE Powermax 45 XP Powermax 65 Powermax 85 Powermax 105 Powermax 125 MAXPRO200 XPR170 XPR300
wdt_ID POWERSOURCE Cutfire 100i K200 Smart Focus 200 Smart Focus 300 Smart Focus 400 Q 1500 Q 3000 Q 4500
1 Pierce Capacity (MS) 20 mm 30 mm 30 mm 40 mm 50 mm 30 mm *Q-GAS 50 mm *Q-GAS 50 mm *Q-GAS
2 Pierce Capacity (SS) 20 mm 30 mm 30 mm 40 mm 50 mm 30 mm *Q-GAS 50 mm *Q-GAS 50 mm *Q-GAS
3 Pierce Capacity (ALU) 15 mm 30 mm 30 mm 40 mm 50 mm 40 mm *Q-GAS 50 mm *Q-GAS 60 mm *Q-GAS
4 Output Current 35-100A 60-200A 20-200A 35-300A 35-400A 20-150A 20-300A 20-450A
5 GAS SUPPLY Air O2 / Air, N2 O2 Ar / H2, N2, Air O2 Ar / H2, N2, Air O2 Ar / H2, N2, Air O2 Ar / H2, N2, Air O2 Ar / H2, N2, Air O2 Ar / H2, N2, Air
6 INPUT VOLTAGE 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH 415 V, 3-PH
POWERSOURCE Cutfire 100i K200 Smart Focus 200 Smart Focus 300 Smart Focus 400 Q 1500 Q 3000 Q 4500
wdt_ID Workpiece thickness (Mild Steel) 25 mm 30 mm 35 mm 40 mm 40 mm 50 mm 60 mm 60 mm 80 mm 100 mm
1 Cutting nozzle 25 - 40 25 - 40 25 - 40 25 - 40 40 - 60 40 - 60 40 - 60 60 - 100 60 - 100 60 - 100
2 Cutting oxygen pressure (bar) 6 7 7.5 7.5 5.5 6.5 7.5 6 7.5 8.5
3 Propane Pressure (bar) 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2 0.2
4 Cutting speed (mm/min) 460 440 420 400 400 360 340 340 300 270
5 Cutting kerf Width (mm) 2.4 2.5 2.6 2.7 2.8 2.9 2.1 3.4 3.5 3.5
Workpiece thickness (Mild Steel) 25 mm 30 mm 35 mm 40 mm 40 mm 50 mm 60 mm 60 mm 80 mm 100 mm
